Introduction
(Next) (Previous) (Table-of-Contents)

This session explains how to generate documentation for a record layout (or record structure) based on the definitions in a COBOL copy file. This documentation may be used to determine the COBOL field name that relates to a position or location within a record.

Note: This module is part of The SimoPATH Series of training and reference materials. For more information refer to The Home Page for The SimoPATH Series.

Generate HTML Documentation for a Record Layout
(Next) (Previous) (Table-of-Contents)

Each record in a non-relational data file (i.e. a sequential file or a Key-Sequenced-Data-Set (also referred to as KSDS)) usually has a unique data structure that is defined in a COBOL copy file. The problem is the COBOL copy file defines the field names as unique and independent entities. The relationship of the individual fields within a record must be manually calculated. The generated HTML documentation will define the individual fields (i.e their logical and physical field lengths) and their relationship within the record (i.e their position within the record).

Generate HTML, View the Command File
(Next) (Previous) (Table-of-Contents)

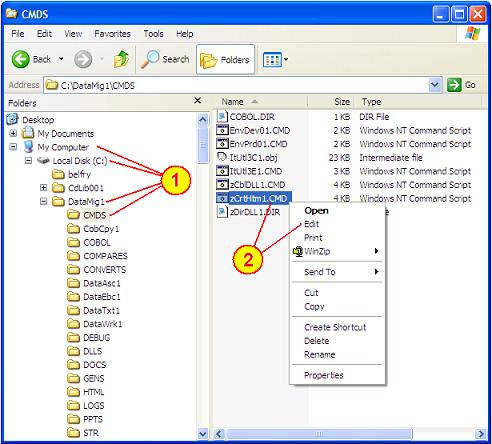

This self-study exercise will use a previously created command file to generate the HTML documentation for the record layout that will be use during the data file compare process when a difference is identified by position within a record.

Notepad should display the records within the command file. This is discussed in more detail in the following section.

Generate HTML, Understand the Command File
(Next) (Previous) (Table-of-Contents)

The following shows the content of the command file used to generate the HTML documentation. Notepad was used to display the following information.

@echo off
rem  * *******************************************************************
rem  *                   This program is provided by:                    *
rem  *                    SimoTime Enterprises, LLC                      *
rem  *           (C) Copyright 1987-2010 All Rights Reserved             *
rem  *             Web Site URL:   http://www.simotime.com               *
rem  *                   e-mail:   helpdesk@simotime.com                 *
rem  * *******************************************************************
rem  *
rem  * Text   - Create HTML docuemntation from a COBOL copy file.
rem  * Author - SimoTime Enterprises
rem  * Date   - January 24, 1996
rem  *
rem  * The SimoEXEC is a driver program. This program will read the Windows
rem  * command line to get the command line parameters.
rem  *
rem  * If the first parameter is "NOTE" then SimoEXEC will write the
rem  * remaining parameters on the command line to a log file and display
rem  * the information on the screen. This provides an audit or validation
rem  * trail to identify a success or failure of the compile.
rem  *
rem  * If the first parameter is "EXEC" then it will use the second parameter
rem  * as a program name and call the program. For the EXEC function the
rem  * driver will look for a PARM= keyword and pass the value of the PARM=
rem  * to the called program in a format that is similar to the way the PARM=
rem  * is passed from mainframe JCL to a called (or EXECuted) program.
rem  *
rem  * Create HTML docuemntation from a COBOL copy file.
rem  *
     setlocal
     call EnvDev01.CMD
rem  *
     SimoEXEC NOTE *******************************************************zCrtHtm1.CMD
     SimoEXEC NOTE Starting JobName zCrtHtm1.CMD
     SimoEXEC NOTE Abstract Create HTML Documentation from a COBOL Copy File
rem  *
rem  * *******************************************************************
rem  * Call the inline procedure to compile the COBOL programs and return.
rem  *
     SimoEXEC NOTE Starting JobStep Create HTML Documentation from COBOL Copy File.
     CALL :CreateHTML %BaseLib1%\CobCpy1\ItemCB01.CPY %BaseLib1%\HTML\itemcb01.htm
rem  *
     SimoEXEC NOTE Produced LogFile %SYSLOG%
     if "%JobStatus%" == "0000" goto :EOJAOK
     goto :EOJNOK
rem  *
rem  * *******************************************************************
rem  * Create a single HTML document from a COBOL copy file.
rem  * The :EOF causes a return to caller within this CMD.
:CreateHTML
     set CreateHTMLStatus=0000
     if exist %2 erase %2
     call Rec1HTML %1 %2 IBM NOPAUSE
     if ERRORLEVEL = 1 set CreateHTMLStatus=0010
     if not "%CreateHTMLStatus%" == "0000" goto :StepNOK
rem  *
     if exist %2 goto :CreateHTMLAOK
     set CreateHTMLStatus=0020
     goto :CreateHTMLNOK
:CreateHTMLNOK
     set JobStatus=%Compile2DLLStatus%
     SimoEXEC NOTE ABENDING JobStep Compile Step, Status is %CreateHTMLStatus%, Program is %1
     goto :EOF
:CreateHTMLAOK
     SimoEXEC NOTE Complete JobStep Compile Step, Status is %CreateHTMLStatus%, Program is %1
     goto :EOF
rem  *
rem  * *******************************************************************
:EOJAOK
     SimoEXEC NOTE Finished JobName zCrtHtm1.CMD
     goto :END
rem  * *******************************************************************
:EOJNOK
     SimoEXEC NOTE ABENDING JobName zCrtHtm1.CMD
     SimoEXEC NOTE The SYSLOG file is displayed in a separate Window using NotePAD.
     start NotePad %SYSLOG%
     pause
rem  * *******************************************************************
:END
     EndLocal
rem  * pause

The preceding listing shows the records in the command file. The comments (or REMarks) explain the purpose of each step in the job that compiles the programs and writes the information to a log file.

Generate HTML, Execute the Command File
(Next) (Previous) (Table-of-Contents)

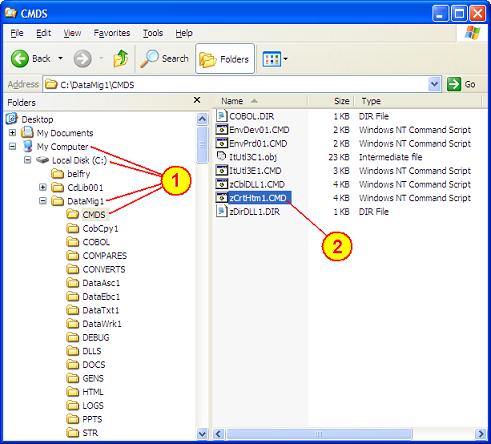

To execute (or run) the command file script simple double click on the item from the following Windows Explorer screen.

The command file should execute and compile the COBOL source code. The ITUTL3C1.DLL should be placed in the c:\DataMig1\DLLS directory.

To view the SYSLOG file to verify the execution of the job to generate the HTML documentation do the following.

Notepad should display the following information (scroll to the end of the file to view the latest entries).

Sat 02/25/2006  0:14:01.00 Starting JobName EnvDev01.CMD
Sat 02/25/2006  0:14:01.01 Finished JobName EnvDev01.CMD
*** 2006/02/25 00:14:01:04 *******************************************************zCrtHtm1.CMD
*** 2006/02/25 00:14:01:09 Starting JobName zCrtHtm1.CMD
*** 2006/02/25 00:14:01:12 Abstract Create HTML Documentation from a COBOL Copy File
*** 2006/02/25 00:14:01:15 Starting JobStep Create HTML Documentation from COBOL Copy File.
*** 2006/02/25 00:14:01:76 Complete JobStep Compile Step, Status is 0000, Program is c:\DataMig1\CobCpy1\ItemCB01.CPY
*** 2006/02/25 00:14:01:81 Produced LogFile c:\DataMig1\LOGS\SysLog01.TXT
*** 2006/02/25 00:14:01:85 Finished JobName zCrtHtm1.CMD

In the preceding list notice the 7th and 9th records that are high-lighted. These statements verify the normal completion of the job step that created the HTML documentation and the normal completion of the job.

Additional Information, HTML Document, Input & Output
(Next) (Previous) (Table-of-Contents)

The following is additional reading material and provides an example of the copy file and the HTML output. The information in the HTML document that is created based on the field definitions in a COBOL copy file will be very useful when trying to relate a position of failure within a record to an actual COBOL field name.

Input for HTML, The COBOL Copy File
(Next) (Previous) (Table-of-Contents)

The COBOL copy file that defines the structure of a record layout is used to generate the HTML documentation. The following is an example of a COBOL copy file.

      *****************************************************************
      *   Copy File for Item Master File used by the Demo programs.   *
      * This is a VSAM Keyed=Sequential-Data-Set or Key-Indexed File. *
      *****************************************************************
      *         Copyright (C) 1987-2010 SimoTime Enterprises          *
      *                     All Rights Reserved                       *
      *****************************************************************
      *              Provided by SimoTime Enterprises                 *
      *        Our e-mail address is: helpdesk@simotime.com           *
      *     Also, visit our Web Site at http://www.simotime.com       *
      *****************************************************************
       01  ITEM-RECORD.
           05  ITEM-NUMBER              PIC X(12).
           05  ITEM-DATA.
               10  ITEM-DESCRIPTION     PIC X(48).
               10  ITEM-QTY-ONHAND      PIC 9(7)            COMP.
               10  ITEM-QTY-ALLOCATED   PIC 9(7)            COMP.
               10  ITEM-UNIT-OF-MEASURE PIC X(16).
               10  ITEM-COST            PIC S9(7)V9(2)      COMP-3.
               10  ITEM-PRICE           PIC S9(7)V9(2)      COMP-3.
               10  ITEM-LADATE          PIC X(8).
               10  ITEM-LATIME          PIC X(8).
               10  ITEM-TOKEN           PIC X(3).
               10  ITEM-D-CODE-1        PIC X.
               10  ITEM-D-PERCENT-1     PIC S9(3)V9(4).
               10  ITEM-D-CODE-2        PIC X.
               10  ITEM-D-PERCENT-2     PIC S9(3)V9(4).
               10  ITEM-D-CODE-3        PIC X.
               10  ITEM-D-PERCENT-3     PIC S9(3)V9(4).
               10  FILLER               PIC X(375).
      *!   ITEMREC1 - End-of-Copy File...

Output of HTML, An HTML Document
(Next) (Previous) (Table-of-Contents)

Performing this task will also generate an HTML document that describes the record layout based upon the copy file definition of the record structure. The HTML document will provide field position within the record and field lengths (both logical which is based on the PIC and physical which is based on the COMP or COMP-3). This task is optional but recommended. The HTML document will be used to relate the position within the record where the failure occurred to the actual COBOL field name.

Summary
(Next) (Previous) (Table-of-Contents)

The purpose of this document is to show how to generate HTML documentation for a record layout based on the definitions in a COBOL copy file.
