Introduction
(Next) (Previous) (Table-of-Contents)

This document describes how to use the Micro Focus Data File Editor to view the contents of a file. The following features and functions will be discussed.

1.	How to start the Data File Editor from within a Micro Focus Net Express project.
2.	How to view an ASCII or EBCDIC encoded file.
3.	How to view a list of the records in the file.
4.	How to view a record in the file using the hexadecimal dump format
5.	How to view a record in the file and map the record to a record layout that was initially defined in a COBOL copy file or other COBOL source member.

Note: This module is part of The SimoPATH Series of training and reference materials. For more information refer to The Home Page for The SimoPATH Series.

Adding a Data File to a Project
(Next) (Previous) (Table-of-Contents)

The following describes the steps to add a data file to a Net Express project and then view the file using the Micro Focus Data File Editor.

From the Net Express desktop (IDE) do the following.

1	From the left window pane do a right-click on the mouse button (position the mouse-pointer to any white area in the left pane).
2	From the drop-down list select "Add files to project...".

Step 1, Add a File, Specifying the Data File Directory
(Next) (Previous) (Table-of-Contents)

The following window should be displayed.

1.1	From the "Look in:" box use the down-arrow to select the "C:\DataMig1\DataEbc1" directory. Notice the "Recent folders:" box is refreshed as you select the drive and directories from the "Look in:" box.
1.2	Notice the Directory now appears in the "Recent folders:" box.

Step 2, Add a File, Specifying the Data File Type
(Next) (Previous) (Table-of-Contents)

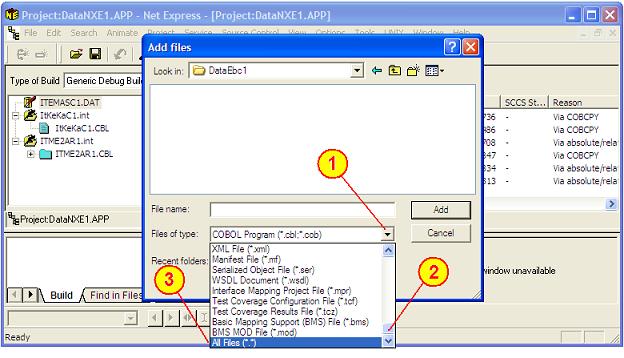

After selecting the directory where the file resides it will be necessary to select the proper file from the directory. Since the data files have an extension of ".DAT" perform the following from the same screen.

2.1	Select the "Files of type:" box and use the down-arrow to to display a drop-down list.
2.2	Scroll to the bottom of the drop-down list using the vertical scroll bar.
2.3	Select the "*All Files (.)*" option.

Step 3, Add a File, Specifying the Data File Name
(Next) (Previous) (Table-of-Contents)

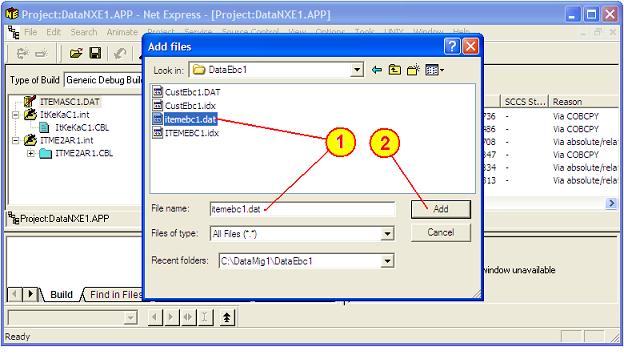

After selecting all file types it will be necessary to select the specific file.

3.1	Click on the "ITEMEBC1.DAT" to select the Item Master File. After the file is selected the file name should appear in the "File name: " box. Note; Make sure to select the ".DAT" and not the ".IDX" file.
3.2	Click on the "Add" button.

Step 4, Add a File, Add the File to the Project
(Next) (Previous) (Table-of-Contents)

The following screen should be displayed.

4.1	Check the "No to all" box
4.2	Click on the "No" button.

Using the Data File Editor
(Next) (Previous) (Table-of-Contents)

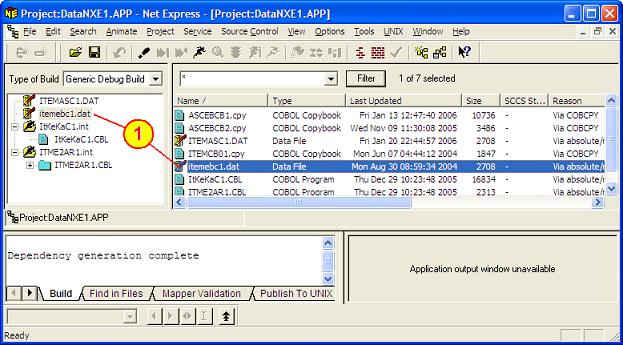

The Net Express Desktop (IDE) Window should be displayed.

1.	The ITEMEBC1.DAT should be shown in both the left and right window panes. Double-click on either item and the Micro Focus Data File Editor should display a list of the first few records in the file.

The following screen should be displayed.

Step 1, Using File Editor, Viewing a List of Records
(Next) (Previous) (Table-of-Contents)

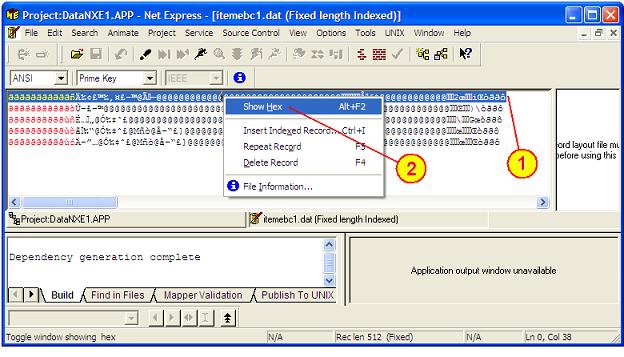

The following screen should be displayed.

1.	Use the mouse to select the first record and click on the right mouse button to show the preceding drop down list.
2.	Select the "Show Hex" option.

Step 2, Using File Editor, Viewing Hex Values & EBCDIC Data
(Next) (Previous) (Table-of-Contents)

The following screen should be displayed.

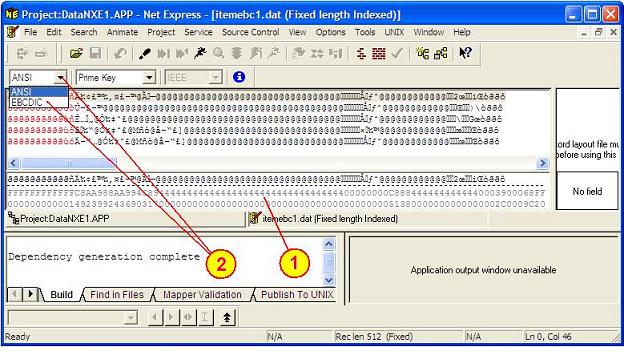

The following window with hexadecimal data should be displayed.

1.	By examining the hexadecimal display it is easy to determine the file is EBCDIC-encoded.
2.	Using the mouse click on the down arrow as shown in the preceding screen display. A drop-down list should be displayed. Select the EBCDIC option.

After selecting the EBCDIC option the list of records should now be displayed in a readable format.

Step 3, Using File Editor, Preparing to Load a Structure File
(Next) (Previous) (Table-of-Contents)

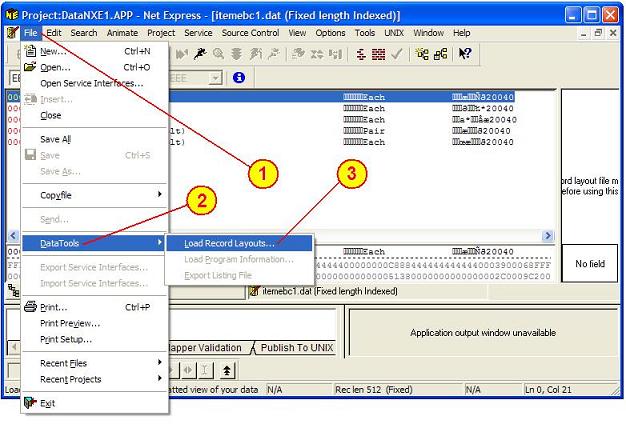

Prepare to load the structure file as shown on the following screen.

1.	From the Net Express tool bar select the "File" option.
2.	From the drop-down list select the "Data Tools" option.
3.	From the context menu select the "Load Record Layouts..." option.

Step 4, Using File Editor, Loading a Structure File
(Next) (Previous) (Table-of-Contents)

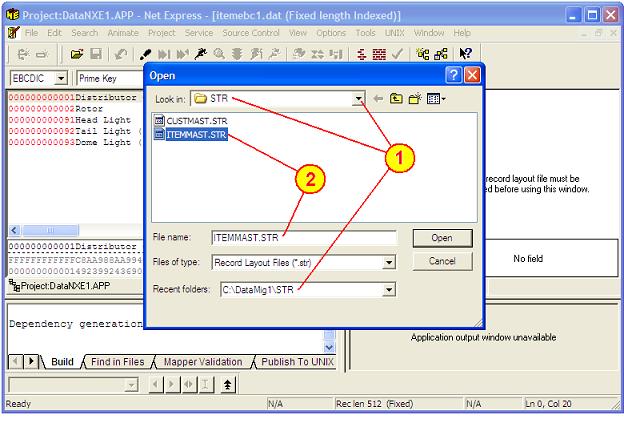

The following screen should be displayed.

1.	If a list of structure file (.STR) is not displayed use "Look in:" box to select the c:\DataMig1\STR directory as displayed in the "Recent folders:" box. Once the directory is selected the list of files should be displayed.
2.	Using the mouse, double- click on the "ITEMMAST.STR" file.

Step 5, Using File Editor, Viewing a Record Mapped to a Structure File
(Next) (Previous) (Table-of-Contents)

The following screen should be displayed.

1.	Notice the "List of Records" is displayed in the left pane..
2.	The selected record (highlighted in the left pane) is displayed in the right pane and is mapped to the structure file.
3.	By positioning the mouse pointer over the vertical line that separates the left and right panes the window pane sizes may be adjusted by dragging the vertical line to the left or right.

Note: Refer to the Create a Structure File document for more information. .

Summary
(Next) (Previous) (Table-of-Contents)

The purpose of this document is to show how to add a data file to a Net Express project and then view the file using the Micro Focus Data File Editor.
