Table of Contents Previous Section Next Section Introduction

Micro Focus Mainframe Express and Net Express have a Data File Editor that may be used to view or edit Sequential or Indexed files. One of the features of the Data File Editor is to map the records in the file to a record layout definition that is included in a structure file (filename.STR).

The purpose of this document is to show how to create a structure file from a record layout that is defined in a COBOL copy file or COBOL source member.

Note: This module is part of The SIMOPATH Series of training and reference materials. For more information refer to The Internet Home Page for The SIMOPATH Series.


We have made a significant effort to ensure the documents and software technologies are correct and accurate. We reserve the right to make changes without notice at any time. The function delivered in this version is based upon the enhancement requests from a specific group of users. The intent is to provide changes as the need arises and in a timeframe that is dependent upon the availability of resources.

Copyright © 1987-2019
SimoTime Technologies and Services
All Rights Reserved

Table of Contents Previous Section Next Section Open an Existing Net Express Project

Refer to the documentation for Opening an Existing Net Express Project to prepare for creating a structure file.

After opening a Net Express project the following window should be displayed.



Table of Contents Previous Section Next Section Create a Structure File

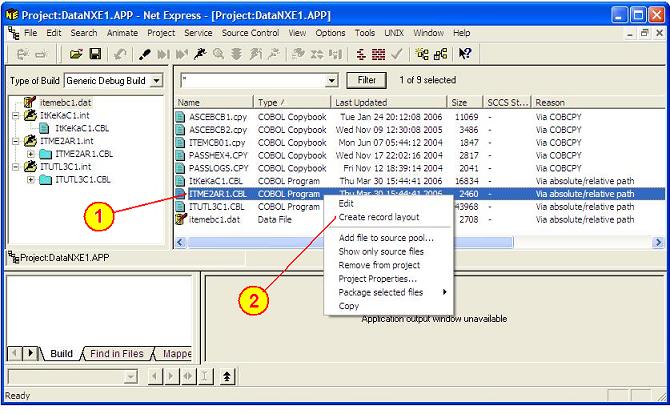

From the following screen prepare to create a structure file.

1. Highlight the COBOL program ITME2AR1.CBL that contains the record definition in its WORKING-STORAGE or LINKAGE section.
2. Click on the right mouse button to display the popup window and select "Create record layout".

The following screen should be displayed.

Table of Contents Previous Section Next Section Step 1, Select the Record Definition

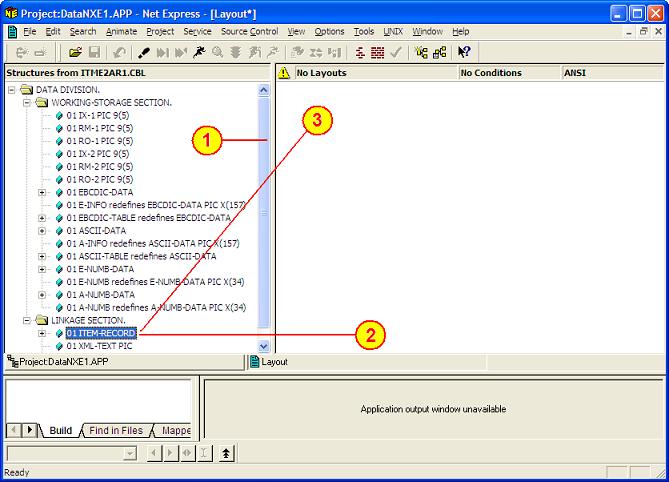

From the following screen select the line of source code in the program that defines the record layout.

1. Use the vertical scroll bar to position the information in the window pane.
2. The 01 ITEM-RECORD in the LINKAGE SECTION contains the record definition or record layout.
Note: To expand items click on the box that contains the "+" or "-".
3. Using the left mouse button click-and-hold the "01 ITEM-RECORD" item and drag it over to the right window pane and release the mouse button.

Table of Contents Previous Section Next Section Step 2, Choose the Record Layout Type

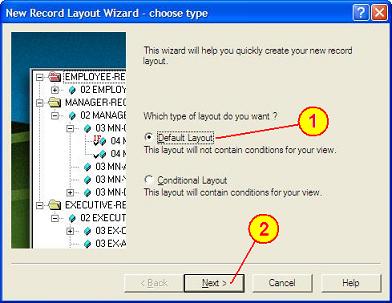

The following screen should be displayed.

1. This example only requires the "Default Layout".
2. Click on the "Next" button.

Table of Contents Previous Section Next Section Step 3, Create the Record Layout

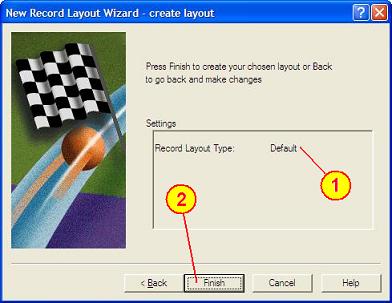

The following screen should be displayed.

1. Notice the Record Layout Type is "Default".
2. Click on the "Finish" button.

Table of Contents Previous Section Next Section Step 4, Save the Structure File

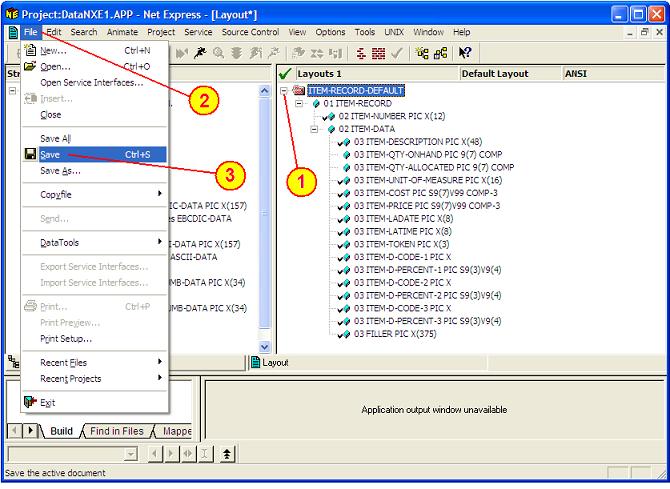

The following screen should be displayed.

1. To expand items click on the box that contains the "+" or "-".
2. Click on the "File" item from the Toolbar .
3. Click on the "Save" item from the Drop-Down list.

Table of Contents Previous Section Next Section Step 5, Specify the Save Location

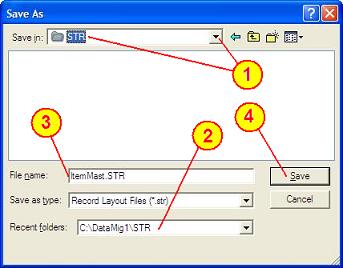

The following screen should be displayed.

1. Select the directory where the structure file will be stored.
2. The "Recent folders" item will display the full path name of where the structure file will be stored.
3. Type the name of the structure file (ItemMast.STR)
4. Press the "Save" button.

Note:  If the structure file is stored in the same directory as the data file and given the same name as the data file (with a .STR extension) then the structure file will be loaded automatically by the Micro Focus Data File Editor.

Table of Contents Previous Section Next Section Step 6, Finish the Structure File Create

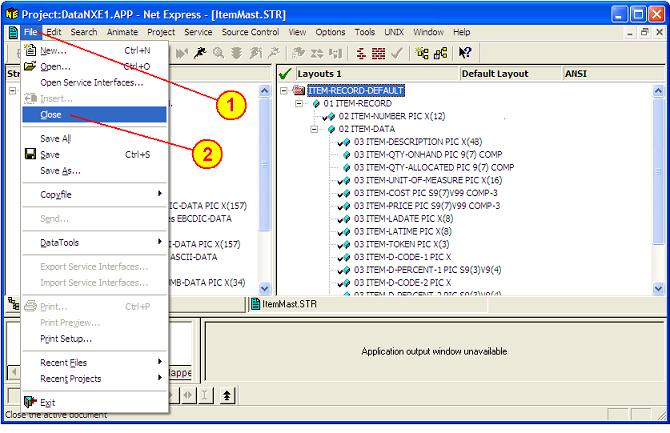

The following screen should be displayed.

1. Click on the "File" item from the Toolbar.
2. Click on the "Close" item from the Drop-Down list.

Table of Contents Previous Section Next Section View Records, use the Structure File

Refer to the documentation for Viewing Records using the Structure File with the Micro Focus Data File Editor.

Table of Contents Previous Section Next Section Summary

The purpose of this document is to show how to create a structure file that may be used by the Micro Focus Data File Editor to view a file and map the records to a data structure defined in a COBOL copy file or source member.

Also, this document may be used to assist as a tutorial for new programmers or as a quick reference for experienced programmers. In the world of programming there are many ways to solve a problem. This document and the links to other documents are intended to provide a choice of alternatives.
